6 Channel TV Video Wall Controller TV Screen Splicing Video Processor 2×3 3×2 1×6 1×5 6×1 5×1 Modes 1080P HDMI DVI VGA USB with Remote RS232 Controller
(as of Sep 24,2021 15:15:10 UTC – Details)
【MULTIPLE DEVICES CONNECTION】6 Channel TV Video Wall Controller, it supports cascading connection of multiple devices, supporting up to 20 TVs in 4×5 splicing mode. It supports HDMI DVI VGA USB input, you can switch to select one of them. With 6 HDMI outputs, it can support up to 6 TV splicing displays. The maximum input and output video resolutions support 1920*1080@60Hz, and the audio signal will also be synchronized with the output video.
【RS232 CONTROLLER】Connect a PC with an RS232 port, you can easily control it with the control software, and you can enable and edit the rolling caption function. If the edge mask is not enabled, the image will look like a pull-out and feel very unnatural; with edge masking, the image is free of distortion, stretch, and more natural.

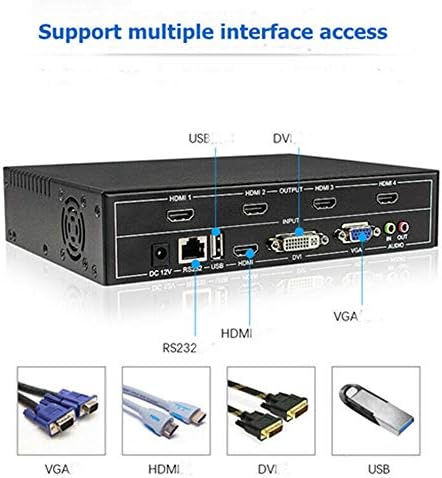

【INPUT SIGNAL】Input Signal: HDMI input: HDMI 1.4 (HDCP1.3), built-in audio, support 480i to 1920*1080P/60Hz resolution; DVI input: DVI-I interface, bind 3.5mm audio interface, max support 1920*108060Hz; VGA input: HD15 interface, bind 3.5mm audio interface, support 640*480/85Hz to 1920*1200/60Hz; USB: Standard USB 2.0 interface, support video, picture, MP3, TXT format play.

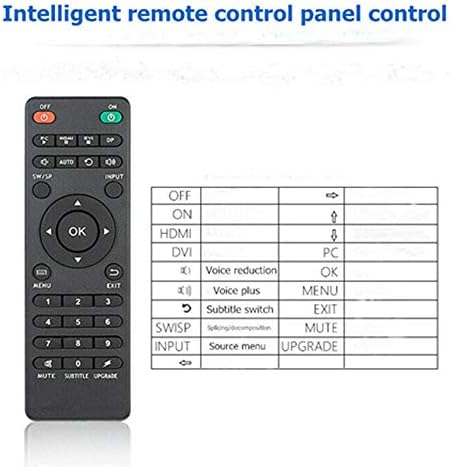

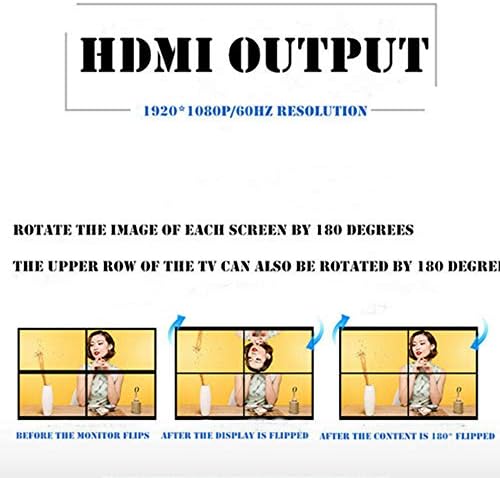

【MAIN PARAMETERS】Power: AC 110V 60Hz; Power Consumption: 30W; Controller: Remote, RS232; Output Signal: HDMI output: 6 channels HDMI output, support 1920*1080P/60Hz resolution; Audio output: 3.5mm audio interface, synchronize switching with video. (Product size: 17” x 10” x 1.7”, Package size: 20” x 12” x 4”, Shipping weight: 8lbs.)
