30V/ 10A DC Power Supply, Dr.meter Variable 4-Digital LED Display Power Supply, Multifuncitonal and Switching DC Regulated Power Supply with USB Interface, Alligator Leads US Power Cord for Laboratory

$69.99

Added to wishlistRemoved from wishlist 0
Add to compare
Category:


Price: $69.99
(as of Sep 17,2021 20:33:04 UTC – Details)


Product Description

Model

PS-3010DF White

PS-3010DF Black

PS305DM

Output Mode

Single Output with USB Interface

Single Output with USB Interface

Single Output

Output DC Current

0-10A

0-10A

0-5A

Output Voltage

0-30V

0-30V

0-30V

Terminal

3 terminals

3 terminals

3 terminals

Short Circuit Protection

Overload Protection

Display Reading Accuracy

+/-1% for voltage; +/-2% for current

+/-1% for voltage; +/-2% for current

+/-1% for voltage; +/-2% for current

dc power supplydc power supply

power supply

power supply

power supply

power supply

dc power supply

dc power supply

Auto Power Calculation

This 30V/10A power supply can intelligently calculate its output voltage and current into power and intuitively present the value on its screen, convenient and considerate.

Full Set of Accessories

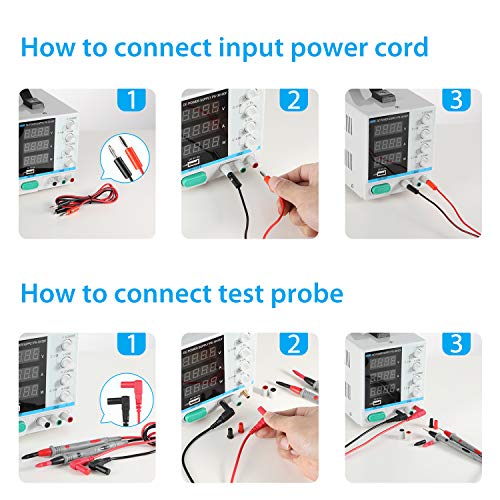

Different to others, this device is provided with both test probes and output cables with alligator clips. Manual operation or hands-free, it depends on you.

Built for Portability

Built with a handle on the top, the Dr.meter bench DC power supply is portable on the go for convenient use.

power supply

power supply

dc power supply

dc power supply

 power supply

 power supply

power supply

power supply

Compact and Lightweight

Measuring in 285 x 128 x 145mm, Dr.meter 30V/10A power supply takes rather small space and can be easily taken to anywhere due to its 1.91kg body.

Precise 4-digit LED Display

Take a glimpse of the screen, then you can easily know the current, voltage, and power via precise 4-digit LED display with 00.01V and 00.01A accuracy.

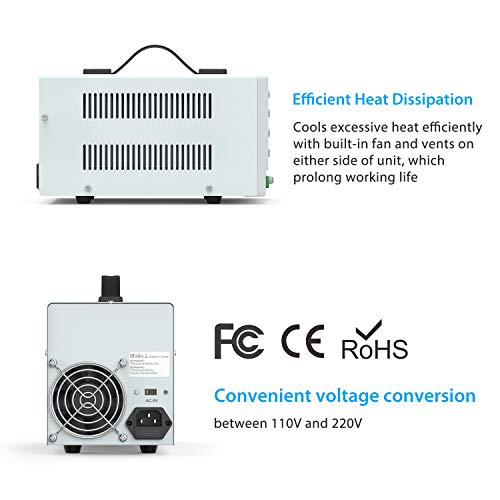

Heat Dissipation

The power supply is specially designed with built-in fan and multiple heat radiation grooves that can effective disperse excessive heat during operation.

Input Voltage Conversion

This DC power supply can be manually switched to 110V or 220V via the conversion switch on the back side.

power supplypower supply

Dr.meter 30V/10A power supply is a DC regulated power supply with continuously adjustable output voltage and current, 4-digit LED display of output voltage, current, and power, and also 5V/2A USB interface. Featuring with compact size, moderate weight, and high efficiency, this device can withstand long-term operation under full power conditions and has rather low failure possibilities after continuous operations.

Built with over temperature, overload, current-limiting protections, you can use it confidently in science researching, colleges, factories and more.

Technical Parameters

– Input Voltage: 220V +/-10%@50Hz or 110V+/-10%@60Hz (can be manually switched)

– Working Conditions: -10 degree celsius ~ 40 degree celsius, <80% relative humidity

– Storage conditions: -20 degree celsius ~ 80 degree celsius, <70% relative humidity

– Power Supply Effect: CV<=0.2%+10mV, CC<=0.2%+10mA

– Load Effect: CV<=0.2%+5mV, CC<=0.2%+10mA

– Ripple and Noise: CV<=20mV r.m.s., CC<=20mA r.m.s.

– Display Accuracy: 4-digit LED display with accuracy of +/-0.2% +/-1 digit

▶ 【High Precision, Wide Range】The DC power supply is a professional power regulation device that designed with crystal clear, backlit 4-digit LED display of voltage, current, and power. Precise accuracy: 00.01V and 0.01A. You can easily tune it within 0-30V and 0-10A.

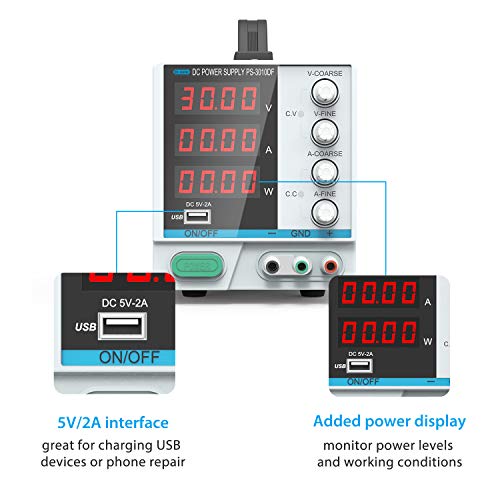

▶ 【5V/2A Output & Auto Power Calculation】Run out of power? Now you can charge your phone, repair phones and more through the 5V/2A USB interface. Moreover, this device intelligently calculates output voltage and current into power and displays the value on its large screen.
▶ 【Excellent Heat Dissipation】Equipped with a big fan controlled by intelligent temperature control sensor and multiple heat radiation grooves on both sides, Dr.meter 30V/10A power supply can quickly disperse heat during operation, greatly improving its working efficiency and lifespan!

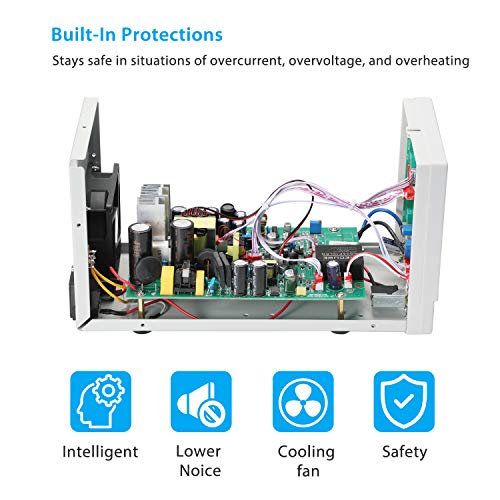

▶ 【Safe and Reliable to Use】Safety is our priority. You can not expect more for safe, productive work since the power supply comes with grounding terminal and multiple protection of over current, over heat, and over voltage.
▶ 【User-Friendly】Frustrated by bulky devices? This one weighs less than 2kg and measures only 285 x 128 x 145mm, perfect to be taken for laboratory, electronic, communication equipment maintenance, products line, scientific research, teaching units and other requirements thanks to complete test probes and output cable with alligator clips.
